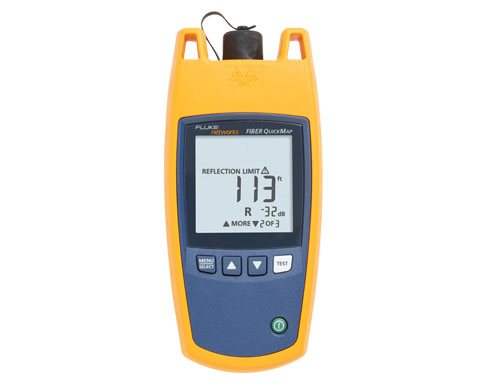

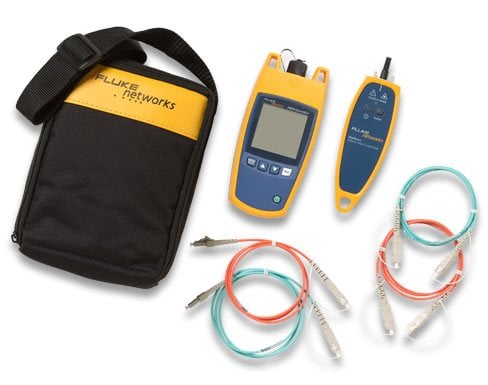

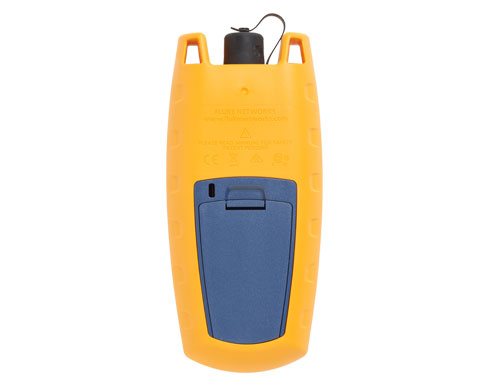

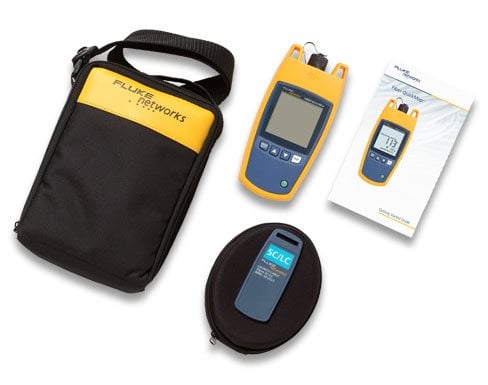

Fiber QuickMap™
Product Highlights
Multimode Fiber Distance and Fault Locator
- Works on multimode fiber, 50/125µm and 62.5/125 µm
- 850 nm output wavelength. Measure up to 4,921 feet (1,500 metres) of fiber in seconds
- Locate severe bends, high-loss splices, breaks and dirty connectors in multimode fiber
- Measure and locate high-loss splices
- Locate the end of a fiber View More >
PRODUCT NAVIGATION
Specifications
Models
Operating temperature with the battery
0ºC to 50ºC
Non-operating temperature
-20ºC to 60ºC
Operating relative humidity (without condensation)
95% (10ºC to 35ºC) 75% (35ºC to 40ºC) uncontrolled < 10ºC
Vibration
Random, 5 Hz to 500 Hz, MIL-PRF-28800F CLASS 2
Shock
1 meter drop test
Altitude
3000m
EMC
EN 61326-1: 2004
Battery type
2 AA alkaline batteries (no battery charger)
Battery life
1500 tests (typical)
Laser safety
Class 1 CDRH Complies to EN 60825-2
LCD type
Backlit black and white (segments)
Index of refraction range
1.45 to 1.5 (factory default is 1.496)
Auto turn off
Automatically turns off after 5 minutes if no keys are pressed. Backlight turns off first.
Factory calibration interval
None
Output wavelengths
850 nm ± 10 nm
Laser classification
Class 1 CDRH Complies to EN 60825-2
Dynamic range
>11 dB
Maximum distance
1500 meters or 4921 feet
Maximum number of incidents shown
9
Distance accuracy (0 m to 1500 m or 0 ft to 4921 ft)
± (1 m + 0.1 % x length) for reflective incidents1 ± (3 m + 0.1 % x length) for non-reflective incidents2
Testing speed
< 6 seconds typical

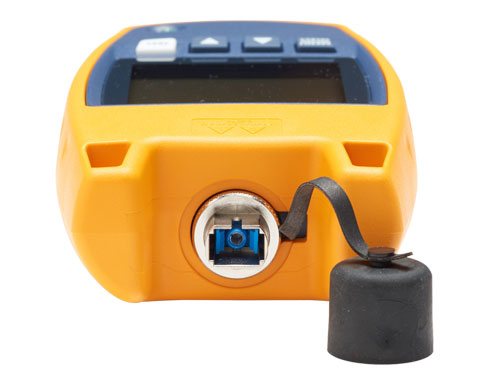

Connector
Removable/cleanable SC adapter, UPC polish
Fiber types tested
50/125 µm or 62.5/125 µm multimode
Detection of reflective incidents3
-35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)
Reflectance accuracy4
± 4 dB
Maximum reflectance measurement
-20 dB
Detection of loss incidents5
0.70 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.2 dB increments)
Bulkhead quality
If no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.
Live fiber detection
Detects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. Looks for a signal every 3 seconds after the first detec-tion. +7 dB maximum input power.
Certifications and compliance
Conforms to relevant European Union
directives
Conforms to relevant Australian standards
Listed by the Canadian Standards Association CSA
C22.2 No. 61010.1.04
Conforms to FCC Rules, Part A, Class A
1. ± user-configurable Index of Refraction (IOR) error ± the incident location error. Incident location error for reflective incidents: ±1 m from 1 m to 1.5 km.
2. ± user-configurable Index of Refraction (IOR) error ± the incident location error. Incident location error for non-reflective incidents: ±2 m for lengths £15 m, otherwise ±1 m.
3. Finds and gives the location of an incident that has a reflectance larger than -55 dB. Detects incidents >1m after the bulkhead connector when the bulkhead reflectance is <35 dB. Detects incidents >3 m after an incident when the incident reflectance is <35 dB.
4. With a backscatter coefficient of -63 dB at 850 nm using a calibrated -14 dB reference.
5. Detects incidents >10 m after the bulkhead connector or any prior incident when the bulkhead reflectance is <-35 dB and the reflectance of any prior incident is <-35 dB. The maximum link loss prior to the incident is <7 dB.
