Module Features - DTX Compact OTDR Module

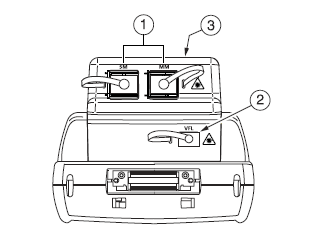

Figure 1. OTDR Module Features

Warning
Never look directly into optical output connectors (1). Some sources produce invisible radiation that can permanently damage your eyes.

1. OTDR ports for singlemode (left) and multimode (right) fiber. The ports have removable SC connector adapters with protective caps.
2. Visual fault locator (VFL) output with universal fiber connector and protective cap. The connector accepts 2.5 mm ferrules.

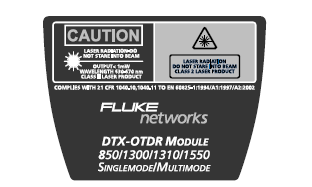

3. Laser safety label (shown below):

Figure 2. OTDR Module Features
