LC Adapter for the VisiFault Visual Fault Locator

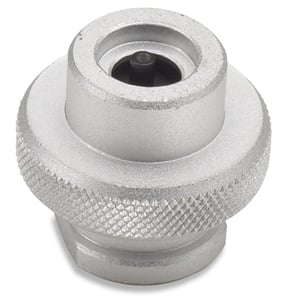

NF380 1.25mm universal adapter

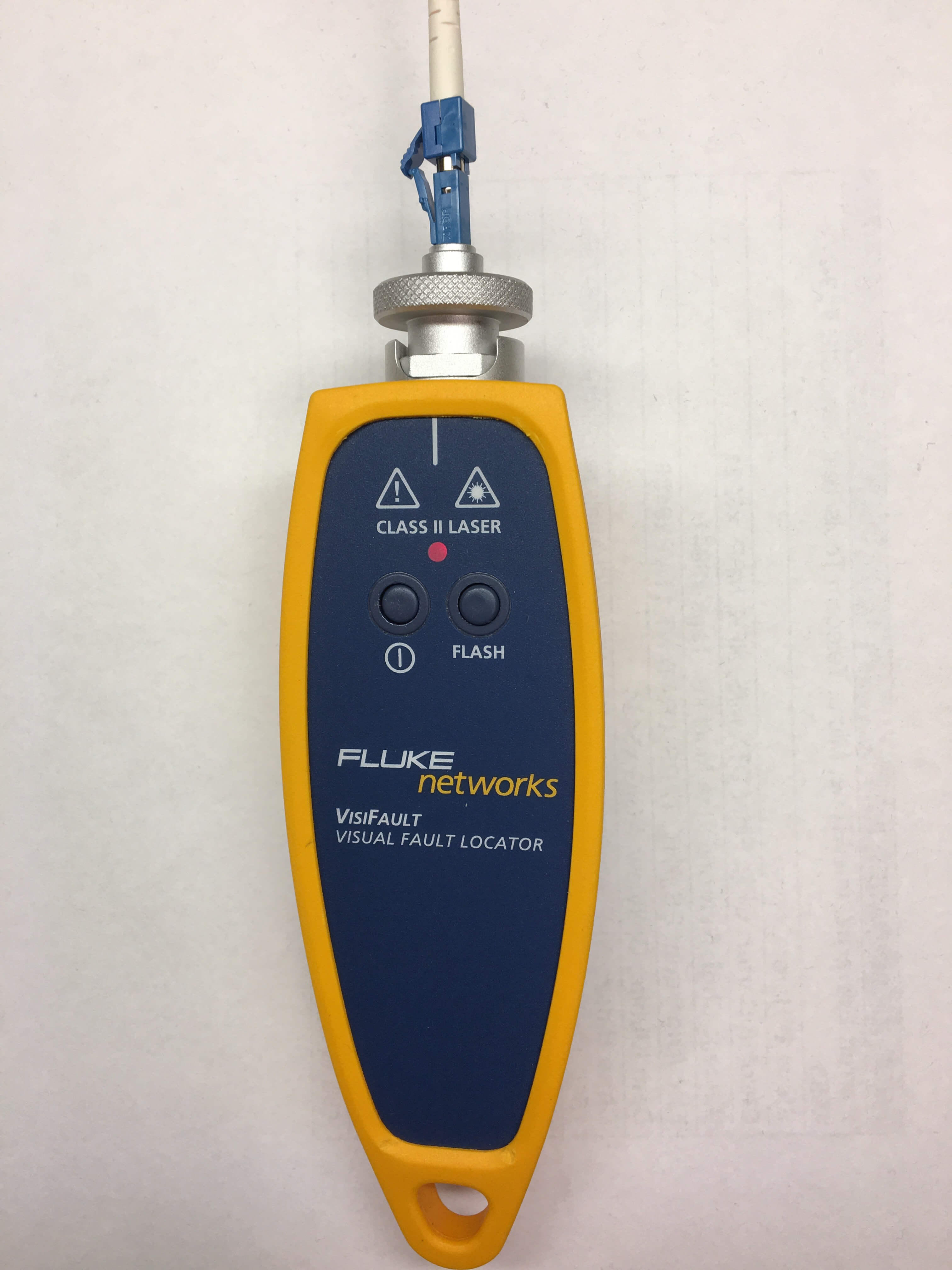

The adapter has an internal spring mechanism that keeps the connection tight when it is installed on VisiFault.  To install the NF380, align the flat portions of the base with the top of the VisiFault metal housing.  Push down and turn a quarter turn to the left or to the right.  Insert the ferrule of the 1.25mm connector into the adapter and press the Power or FLASH button.
